Muon Routing Atlas

May 2026

Question

Muon is an orthogonalized optimizer that often improves transformer pretraining, but the practical question is more specific: does Muon need to be applied to every hidden matrix, or can it be routed selectively to the parts of the transformer where it matters most?

This project treats optimizer assignment as the experimental variable. The harness trains compact decoder-only language models and compares AdamW against Muon routed to all hidden matrices, MLP matrices, attention matrices, V/O projections, Q/K projections, no-Q/K, and layerwise regions.

Implementation

Built a reproducible PyTorch training pipeline for TinyStories and FineWeb-Edu sample-10BT.
Implemented AdamW and Muon+AdamW hybrid optimization with explicit parameter group routing.
Logged resolved configs, optimizer groups, validation curves, qualitative samples, update norms, effective ranks, and report assets.
Added tmux scripts for smoke tests, routing sweeps, FineWeb-Edu experiments, layerwise runs, batch-size stress tests, and report generation.

Main Result

All-hidden Muon is consistently the best routing in the completed runs. The surprise is that Muon without Q/K is consistently second-best and recovers most of the all-hidden Muon gain: about 83.2% on TinyStories 12M and 84.0% on FineWeb-Edu 85M.

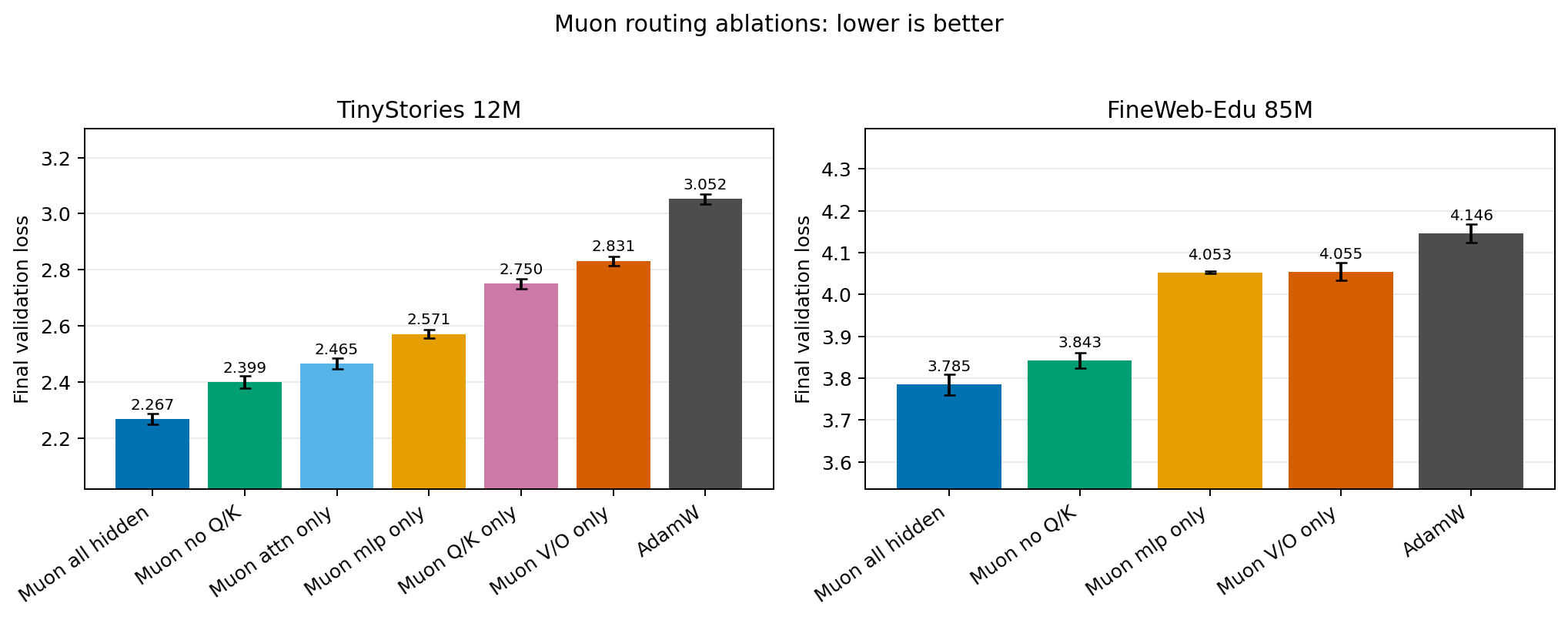

Final validation loss for Muon routing ablations — Final validation loss across the main routing ablations. Lower is better.

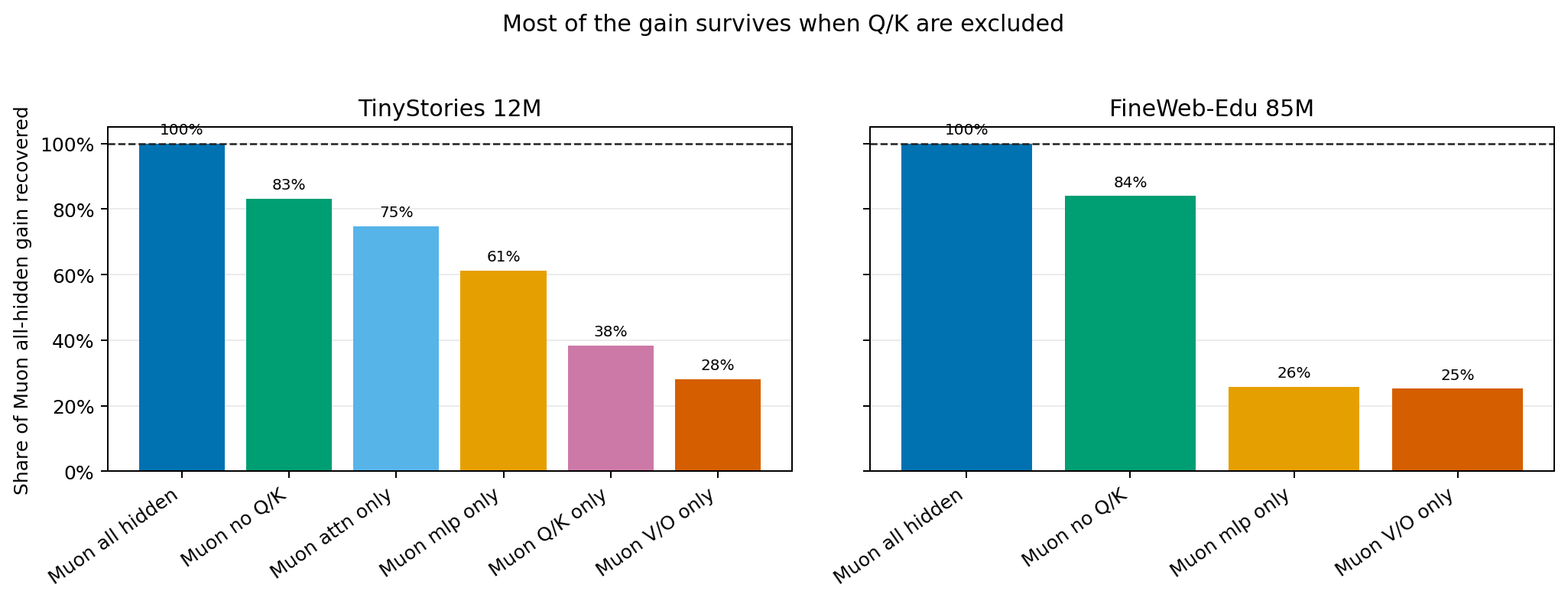

Fraction of all-hidden Muon gain recovered by each routing — No-Q/K routing recovers most, but not all, of the all-hidden Muon gain.

Routing Takeaways

Claim	Result
Muon beats AdamW	Supported strongly across the main comparisons.
All-hidden Muon is best	Supported in every seed-replicated main comparison.
No-Q/K matches all-hidden	Not supported. It is second-best, but still worse than all-hidden.
MLP-only or V/O-only explains the full gain	Not supported on FineWeb-Edu 85M. Each recovers only about 25-26% individually.
FFN + V/O together matter	Supported. No-Q/K recovers about 84% of the all-hidden gain on FineWeb-Edu.

Geometry

The update geometry is not uniform across modules. On FineWeb-Edu 85M, Muon update norms are larger for FFN gate and up matrices than for attention V/O or Q/K matrices, which suggests that the FFN pathway receives stronger update pressure under Muon.

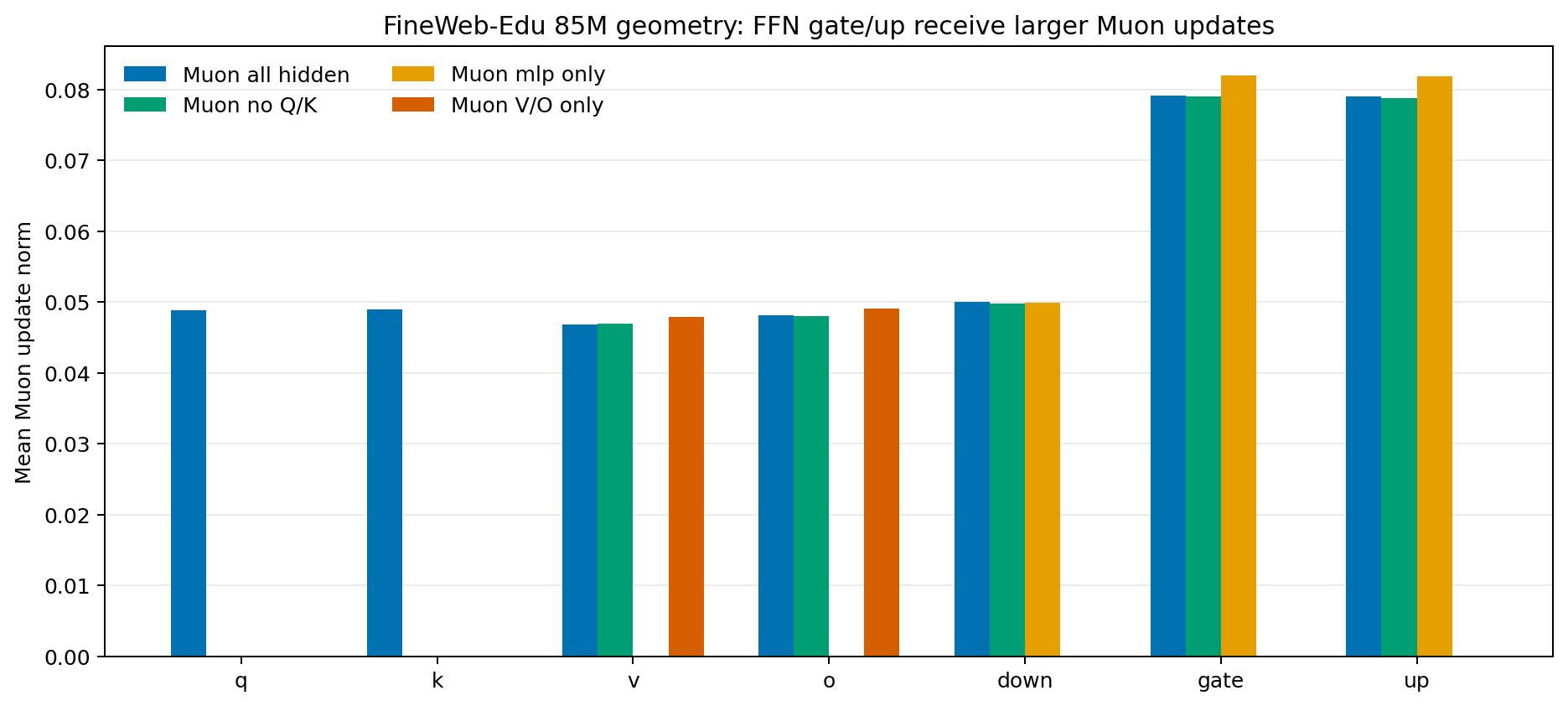

Muon update norms by transformer module — Mean update norms by module for FineWeb-Edu 85M runs.

Batch Size

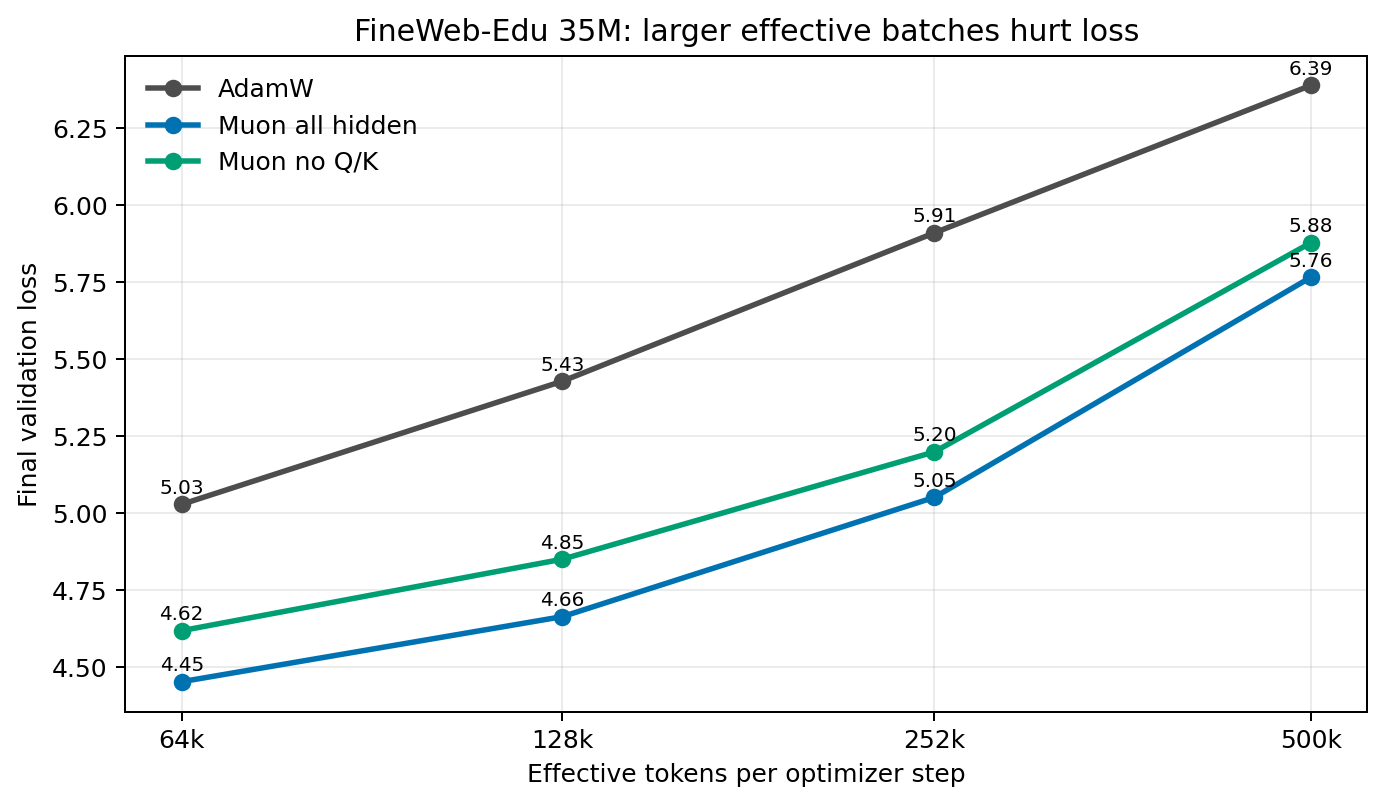

A FineWeb-Edu 35M batch-size sweep showed that absolute validation loss worsened as effective tokens per optimizer step increased, while the optimizer ranking stayed stable: all-hidden Muon best, no-Q/K second, AdamW worst.

Conclusion

Selective Muon routing works surprisingly well, but it does not fully replace all-hidden Muon. The strongest interpretation from these runs is that most of Muon's benefit comes from non-Q/K hidden matrices, especially the combined FFN + V/O pathway. Q/K appears supplementary rather than central.
